深度生成模型

import torch
import torch.nn as nn
import torch.nn.functional as F
import torch.optim as optim
from torchvision import datasets, transforms
from torch.autograd import Variable
from torchvision.utils import save_image

bs = 100  # batch size
# MNIST Dataset
train_dataset = datasets.MNIST(root='./mnist_data/', train=True, transform=transforms.ToTensor(), download=True)
test_dataset = datasets.MNIST(root='./mnist_data/', train=False, transform=transforms.ToTensor(), download=False)
# Data Loader (Input Pipeline)
train_loader = torch.utils.data.DataLoader(dataset=train_dataset, batch_size=bs, shuffle=True)
test_loader = torch.utils.data.DataLoader(dataset=test_dataset, batch_size=bs, shuffle=False)

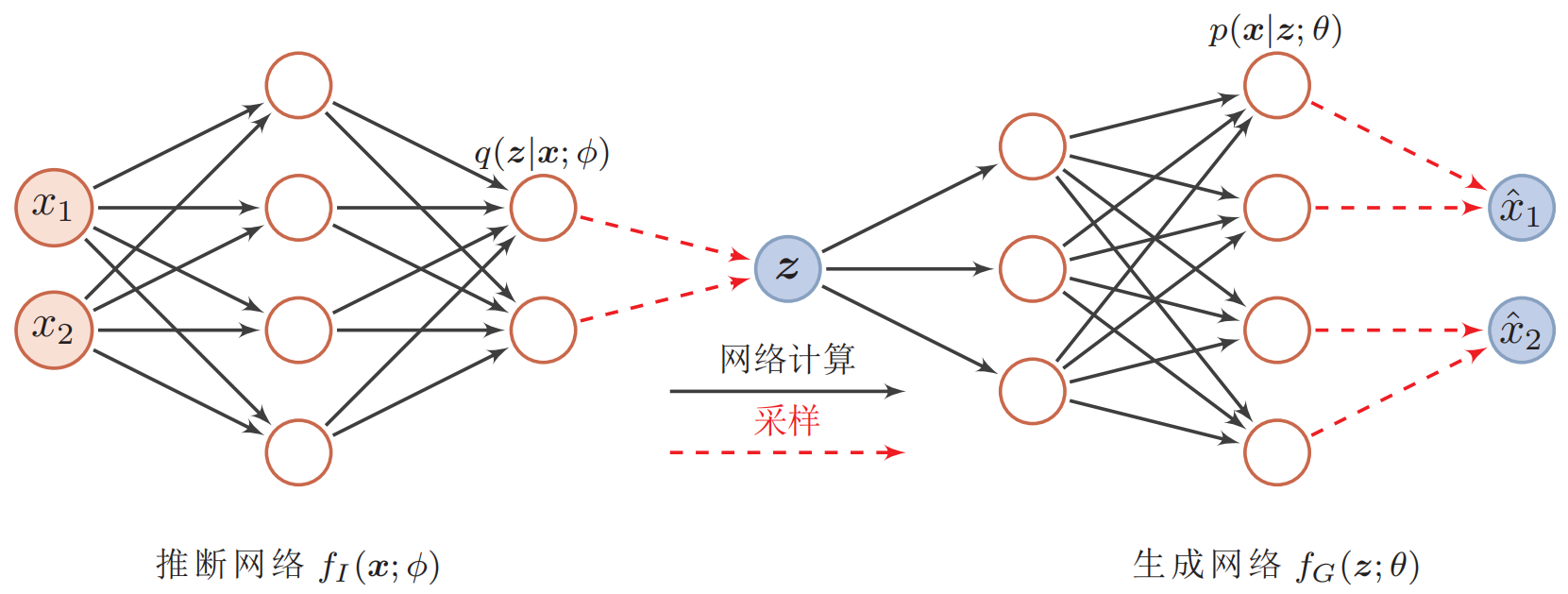

class VAE(nn.Module):
    def __init__(self, x_dim, h_dim1, h_dim2, z_dim):
        super(VAE, self).__init__()

        # encoder part
        self.fc1 = nn.Linear(x_dim, h_dim1)
        self.fc2 = nn.Linear(h_dim1, h_dim2)
        self.fc31 = nn.Linear(h_dim2, z_dim)
        self.fc32 = nn.Linear(h_dim2, z_dim)

        # decoder part
        self.fc4 = nn.Linear(z_dim, h_dim2)
        self.fc5 = nn.Linear(h_dim2, h_dim1)
        self.fc6 = nn.Linear(h_dim1, x_dim)

    def encoder(self, x):
        h = F.relu(self.fc1(x))
        h = F.relu(self.fc2(h))
        return self.fc31(h), self.fc32(h)  # mu, log_var

    def sampling(self, mu, log_var):
        std = torch.exp(0.5 * log_var)
        eps = torch.randn_like(std)
        return eps.mul(std).add_(mu) # return z sample

    def decoder(self, z):
        h = F.relu(self.fc4(z))
        h = F.relu(self.fc5(h))
        return F.sigmoid(self.fc6(h))

    def forward(self, x):
        mu, log_var = self.encoder(x.view(-1, 784))
        z = self.sampling(mu, log_var)
        return self.decoder(z), mu, log_var


# build model
vae = VAE(x_dim=784, h_dim1= 512, h_dim2=256, z_dim=2)
if torch.cuda.is_available():
    vae.cuda()

# define the optimizer and loss function
optimizer = optim.Adam(vae.parameters())
# return reconstruction error + KL divergence losses
def loss_function(recon_x, x, mu, log_var):
    BCE = F.binary_cross_entropy(recon_x, x.view(-1, 784), reduction='sum')
    KLD = -0.5 * torch.sum(1 + log_var - mu.pow(2) - log_var.exp())
    return BCE + KLD


def train(epoch):
    vae.train()
    train_loss = 0
    for batch_idx, (data, _) in enumerate(train_loader):
        data = data.cuda()
        optimizer.zero_grad()

        recon_batch, mu, log_var = vae(data)
        loss = loss_function(recon_batch, data, mu, log_var)

        loss.backward()
        train_loss += loss.item()
        optimizer.step()

        if batch_idx % 100 == 0:
            print('Train Epoch: {} [{}/{} ({:.0f}%)]\tLoss: {:.6f}'.format(epoch, batch_idx * len(data), len(train_loader.dataset), 100. * batch_idx / len(train_loader), loss.item() / len(data)))
    print('====> Epoch: {} Average loss: {:.4f}'.format(epoch, train_loss / len(train_loader.dataset)))


def test():
    vae.eval()
    test_loss= 0
    with torch.no_grad():
        for data, _ in test_loader:
            data = data.cuda()
            recon, mu, log_var = vae(data)

            # sum up batch loss
            test_loss += loss_function(recon, data, mu, log_var).item()

    test_loss /= len(test_loader.dataset)
    print('====> Test set loss: {:.4f}'.format(test_loss))


for epoch in range(1, 51):
    train(epoch)
    test()
    with torch.no_grad():
        z = torch.randn(64, 2).cuda()
        print(z)
        sample = vae.decoder(z).cuda()
        save_image(sample.view(64, 1, 28, 28), './sample_' + str(epoch) +  '.png')

import os
import tensorflow as tf
import matplotlib.pyplot as plt
from tensorflow.keras import layers

# 获取MNIST数据集(只获取训练集即可)
(train_images, train_labels), (_, _) = tf.keras.datasets.mnist.load_data()

train_images = train_images.reshape(train_images.shape[0], 28, 28, 1).astype('float32')
train_images = (train_images) / 255  # Normalize the images to [-1, 1]
print(train_images[0])

BUFFER_SIZE = 60000
BATCH_SIZE = 256

# Batch and shuffle the data
dataset = tf.data.Dataset.from_tensor_slices(train_images).shuffle(BUFFER_SIZE).batch(BATCH_SIZE, drop_remainder=True)
print(dataset)  # <BatchDataset shapes: (batch_size, 28, 28, 1), types: tf.float32>


# 使用Keras Sequential API创建生成网络

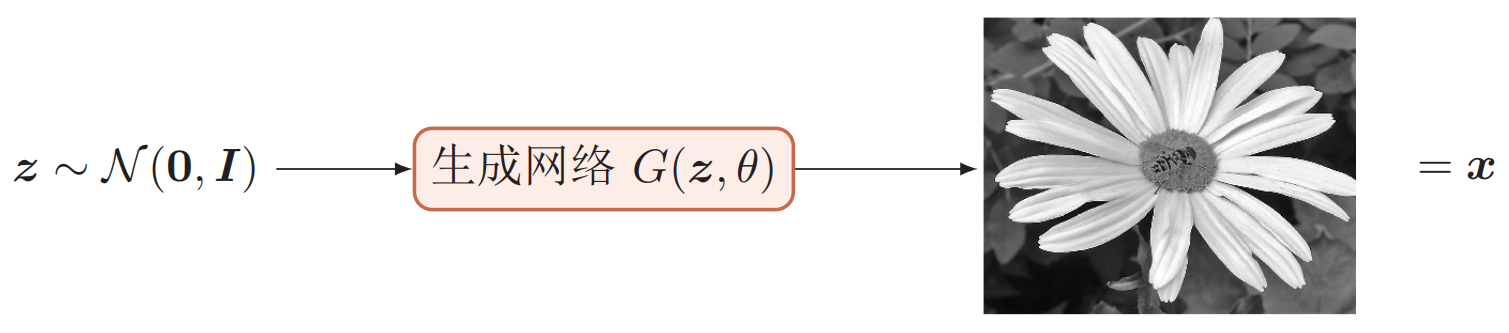

def make_generator_model():
    model = tf.keras.Sequential()
    model.add(layers.Dense(7*7*256, use_bias=False, input_shape=(100,)))
    model.add(layers.BatchNormalization())
    model.add(layers.LeakyReLU())

    model.add(layers.Reshape((7, 7, 256)))
    assert model.output_shape == (None, 7, 7, 256)  # Note: None is the batch size

    # model.add(layers.Conv2DTranspose(128, (5, 5), strides=(1, 1), padding='same', use_bias=False))
    # assert model.output_shape == (None, 7, 7, 128)
    # model.add(layers.BatchNormalization())
    # model.add(layers.LeakyReLU())

    model.add(layers.Conv2DTranspose(64, (5, 5), strides=(2, 2), padding='same', use_bias=False))
    assert model.output_shape == (None, 14, 14, 64)
    model.add(layers.BatchNormalization())
    model.add(layers.LeakyReLU())

    model.add(layers.Conv2DTranspose(1, (5, 5), strides=(2, 2), padding='same', use_bias=False, activation='tanh'))
    assert model.output_shape == (None, 28, 28, 1)

    return model


# 使用尚未训练的生成器创建一张图片
generator = make_generator_model()
noise = tf.random.normal([1, 100])
generated_image = generator(noise, training=False)
print(generated_image.shape)  # (batch_size:1, 28, 28, 1)


# 使用Keras Sequential API创建判别网络
def make_discriminator_model():
    model = tf.keras.Sequential()
    model.add(layers.Conv2D(64, (5, 5), strides=(2, 2), padding='same',
                                     input_shape=[28, 28, 1]))
    model.add(layers.LeakyReLU())
    model.add(layers.Dropout(0.3))

    model.add(layers.Conv2D(128, (5, 5), strides=(2, 2), padding='same'))
    model.add(layers.LeakyReLU())
    model.add(layers.Dropout(0.3))

    model.add(layers.Flatten())
    model.add(layers.Dense(1))

    return model


# 使用尚未训练的判别器对所生成的图像进行真伪分类
discriminator = make_discriminator_model()
decision = discriminator(generated_image)
print(decision)

# 定义损失函数和优化器
cross_entropy = tf.keras.losses.BinaryCrossentropy(from_logits=True)
# from_logits是一个布尔量，当from_logits=True的时候，该层会将output做normalize(softmax)。因此，
# 一个直观的理解就是layerA with activation + softmax + loss(from_logits=False)与layerA + loss(from_logits=True)等效


# 判别器损失
def discriminator_loss(real_output, fake_output):
    real_loss = cross_entropy(tf.ones_like(real_output), real_output)
    fake_loss = cross_entropy(tf.zeros_like(fake_output), fake_output)
    total_loss = real_loss + fake_loss
    return total_loss


# 生成器损失
def generator_loss(fake_output):
    return cross_entropy(tf.ones_like(fake_output), fake_output)


# 对应的优化器
generator_optimizer = tf.keras.optimizers.Adam(1e-4)
discriminator_optimizer = tf.keras.optimizers.Adam(1e-4)

EPOCHS = 50
noise_dim = 100
# number of example to be generated and corresponding seeds
num_examples_to_generate = 16
seed = tf.random.normal([num_examples_to_generate, noise_dim])

# 平均计算每一轮判别器和生成器的损失
gen_train_loss = tf.keras.metrics.Mean()
disc_train_loss = tf.keras.metrics.Mean()

# 训练循环在生成器接收到一个随机种子作为输入时开始。该种子用于生成一个图像
# 判别器随后被用于对真实图像（选自训练集）和伪造图像（由生成器生成）进行分类
# 为每一个模型计算损失，并使用梯度更新生成器和判别器
def train_step(images):
    noise = tf.random.normal([BATCH_SIZE, noise_dim])
    with tf.GradientTape() as gen_tape, tf.GradientTape() as disc_tape:
        generated_image = generator(noise)
        real_output = discriminator(images, training=True)
        fake_output = discriminator(generated_image, training=True)

        gen_loss = generator_loss(fake_output)
        disc_loss = discriminator_loss(real_output, fake_output)
        print(gen_loss, disc_loss)

    gradients_of_generator = gen_tape.gradient(gen_loss, generator.trainable_variables)
    gradients_of_discriminator = disc_tape.gradient(disc_loss, discriminator.trainable_variables)

    generator_optimizer.apply_gradients(zip(gradients_of_generator, generator.trainable_variables))
    discriminator_optimizer.apply_gradients(zip(gradients_of_discriminator, discriminator.trainable_variables))

    gen_train_loss(gen_loss)
    disc_train_loss(disc_loss)


def generate_and_save_images(model, epoch, test_input):
    predictions = model(test_input, training=False)
    fig = plt.figure(figsize=(4, 4))

    for i in range(predictions.shape[0]):
        plt.subplot(4, 4, i + 1)
        plt.imshow(predictions[i, :, :, 0] * 255, cmap='gray')
        plt.axis('off')

    plt.savefig('image_at_epoch_{:03d}.png'.format(epoch))


# 开始训练，并完成每个spoch后生成一组4*4的图像并保存
for epoch in range(EPOCHS):
    gen_train_loss.reset_states()
    disc_train_loss.reset_states()

    for image_batch in dataset:
        train_step(image_batch)

    print('Epoch ' + str(epoch) + ', Generator Loss: ' + str(gen_train_loss.result()) + ', Discriminator Loss: ' + str(disc_train_loss.result()))
    generate_and_save_images(generator, epoch + 1, seed)
